SIS (GDS, BMS)
    Publish time 2023-08-14 17:11
SIS (GDS, BMS)

The SIS (Safety Instrument System) is a core system in the field of industrial safety, primarily used to monitor, assess, and control potential hazards in high-risk industrial processes. It ensures that safety measures are triggered in a timely manner when process abnormalities occur, preventing accidents or mitigating their consequences.

Application Area

  • Chemical / Petrochemical Industry: Emergency Shutdown (ESD)/Pipeline Shutdown (PSD) for Oil and Gas Pipeline Leakage

  • Nuclear Power: Reactor Emergency Shutdown (SCRAM)

  • Pharmaceutical / Chemical / Oil & Gas: Interlocking Isolation for Toxic Gas Release (such as Gas Detection System)

  • Environmental Protection, Exhaust Gas Treatment (such as the Burning Management System)

  • Chemical/Oil and Gas: Fire and Gas System (F&G)

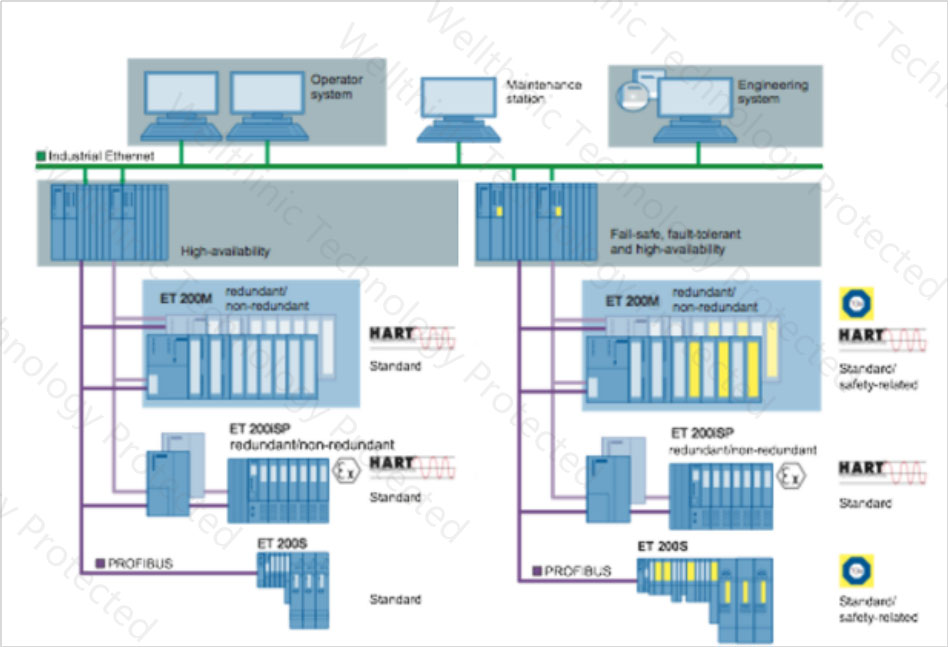

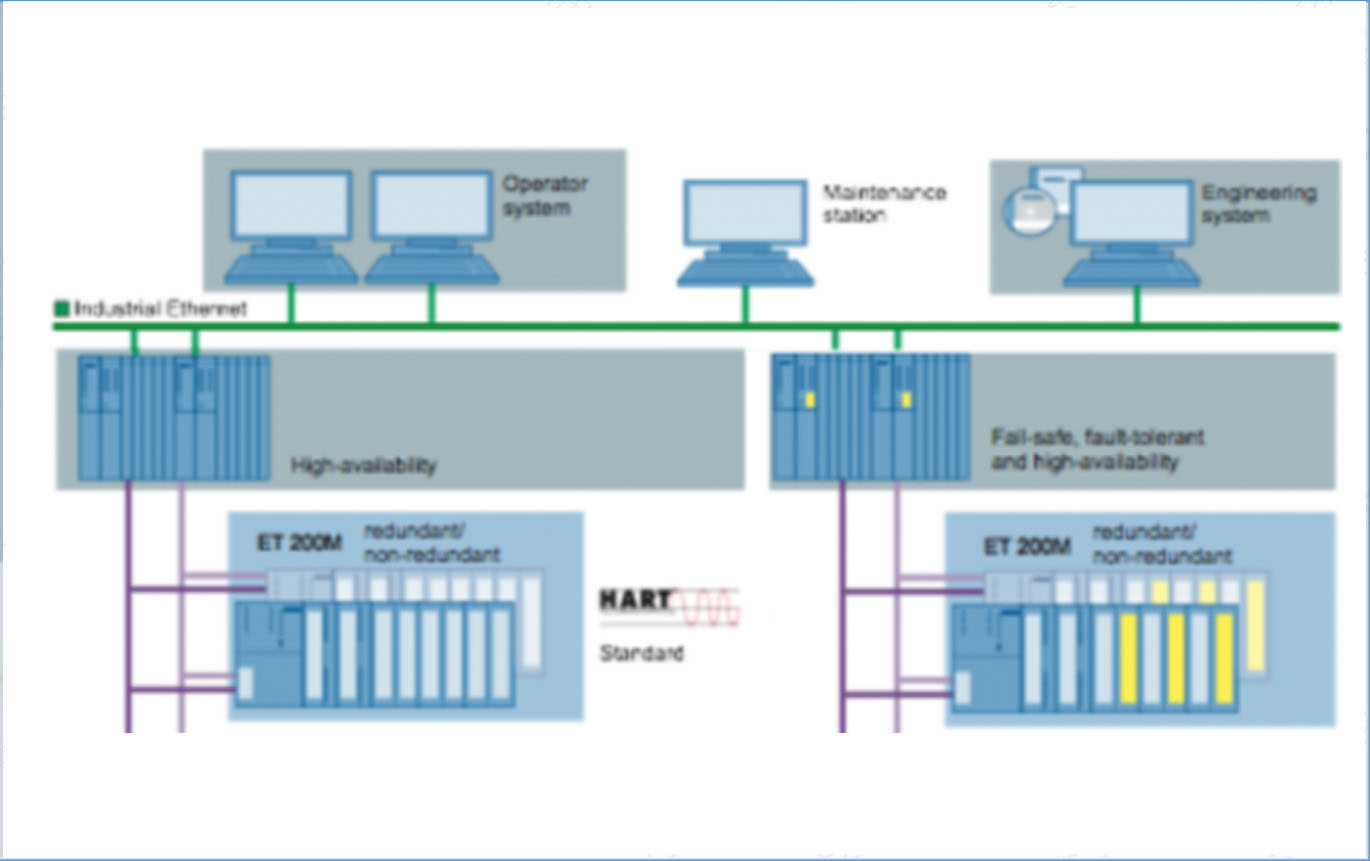

Typical System Architecture

System Function Introduction:

  • Real time security monitoring and diagnosis

  • Safety interlock and emergency action

  • Independence and high reliability

  • Safety Integrity Level (SIL) certification

  • Fail Safe Design

  • Event recording and accident tracing

  • Interaction with external systems

  • Maintenance and Testing Management

Main Applications:

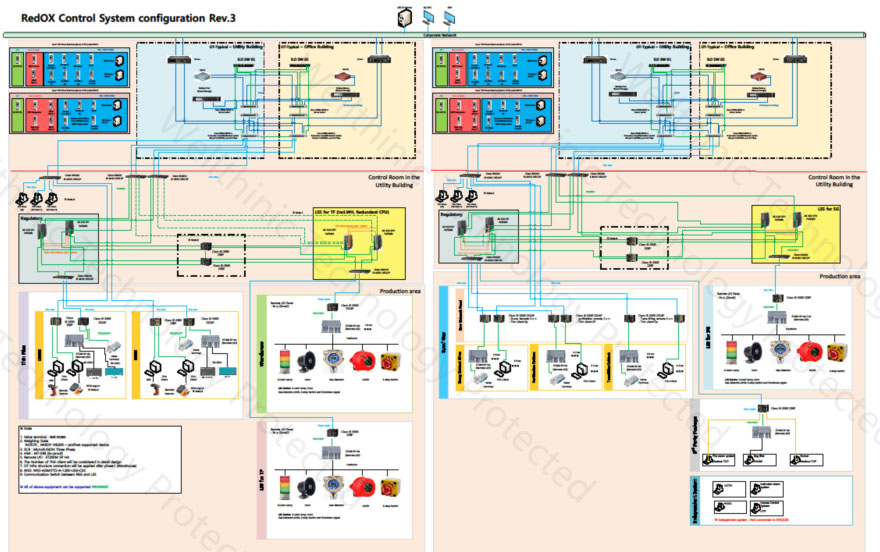

System Type: GDS

System Type: Burning Management System

Software: SIMATIC PCS7

Project Scope: EPC project

Delivered Function:

  • Combustible and toxic gas detectors are installed in the SPG workshop, TF workshop, and various Class A warehouses as flame detectors for gases that are prone to spontaneous combustion (AsH3, PH3, B2H6, SiH2Cl2, etc.)

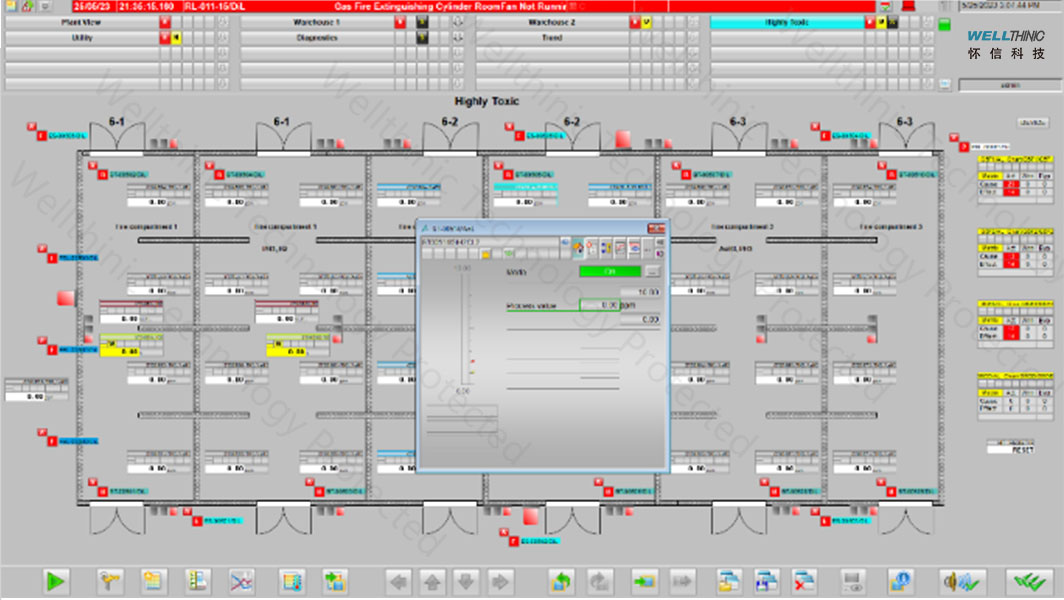

  • The signal from the gas detector is transmitted to the Life Safety System (LSS) in the fire control room of the factory area, which displays the concentration of flammable and toxic gases in real time

  • Alarm for detector concentration exceeding limits and flame detection, and trigger safety interlock actions to prevent fires, explosions, or personal accidents

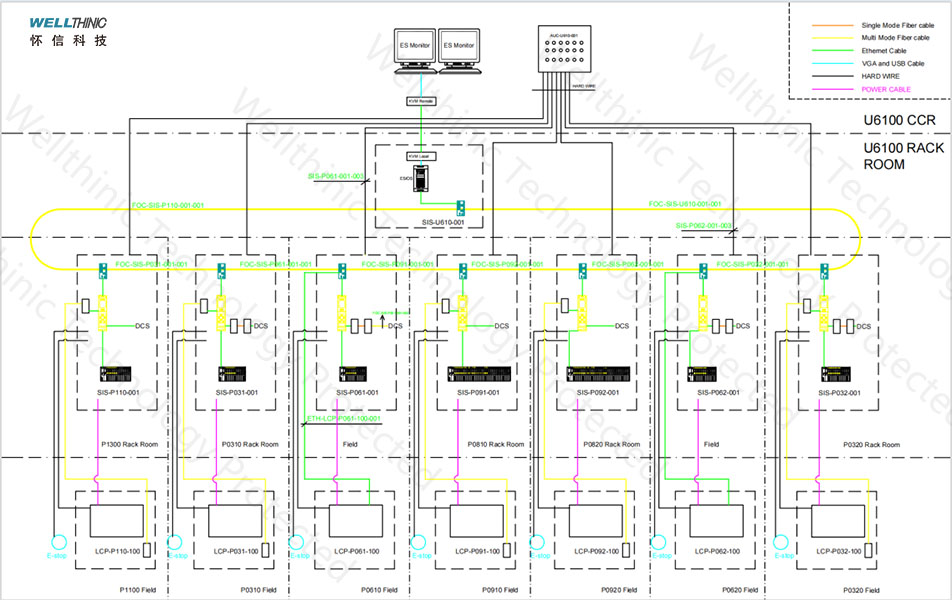

System Type: Standard SIS

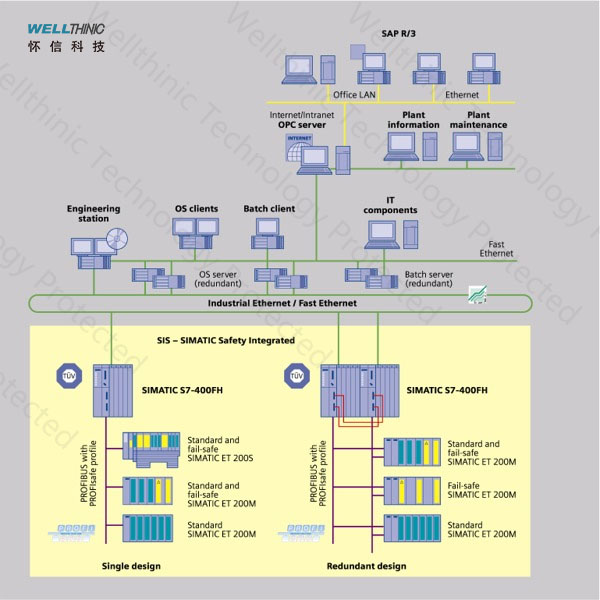

Hardware: SIEMENS S7-400FH + fail-safe ET200S + fail-safe ET200M+ ET200M

Software:  SIEMENS PCS7(CFC+SFC) + WINCC + Batch

Delivered Function:

  • Important parameter monitoring

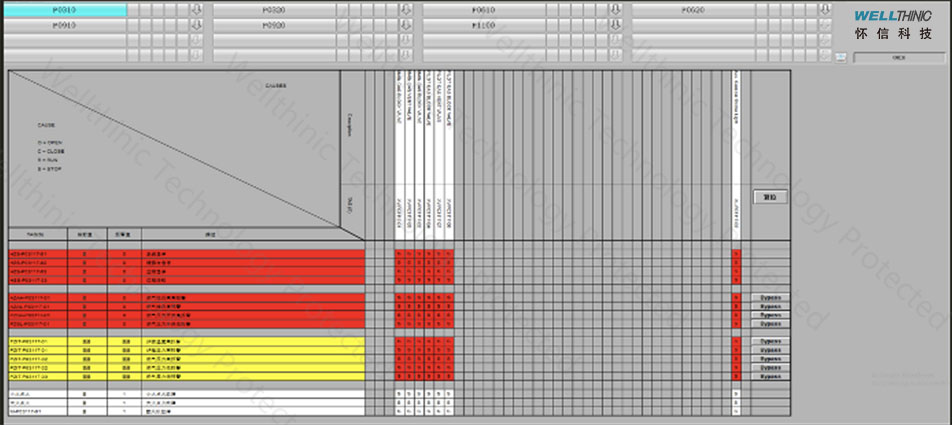

  • SIS related logical control

  • Instrument safety position when emergency shutdown or system fault

  • High speed response action (ms level)
